POWERFUL COMPRESSION. MAXIMUM VALUE.

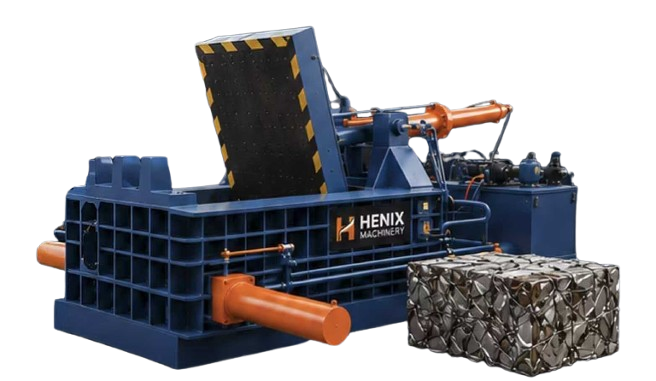

Y81-125

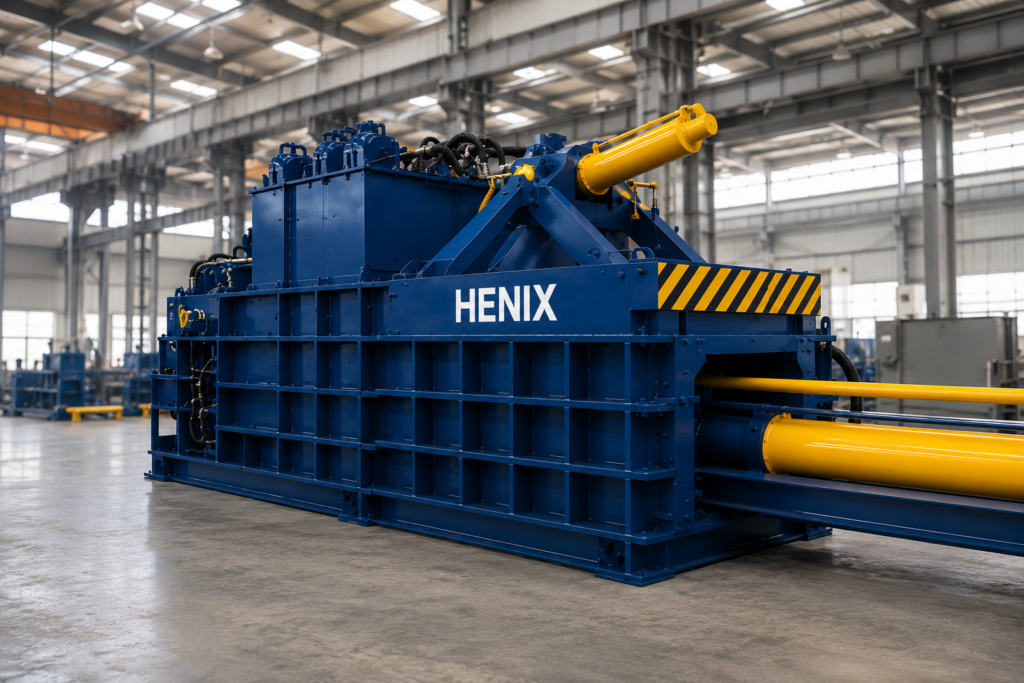

Scrap Metal Baler
Designed for compressing scrap steel,aluminum, copper and mixed metal waste into compact bales for efficient recycling.
1250 kN
Norminal Force
300×300
Bale Size
1200x700x600
Bin Size
15 kW
Motor Power
Side-turning
Discharge Type
Product Overview
Powerful Compression.
Maximum Efficincy.
The Y81-125 scrap metal baler is designed for compressing loose scrap steel, aluminum, cans and metal shavings into compact bales. It helps reduce storage space, improve handling efficiency and lower transportation costs.
Compcat Bale output
Lower Transportation cost
Easy operation & maintenance
Reliable hydraulic system
Machine Highlights

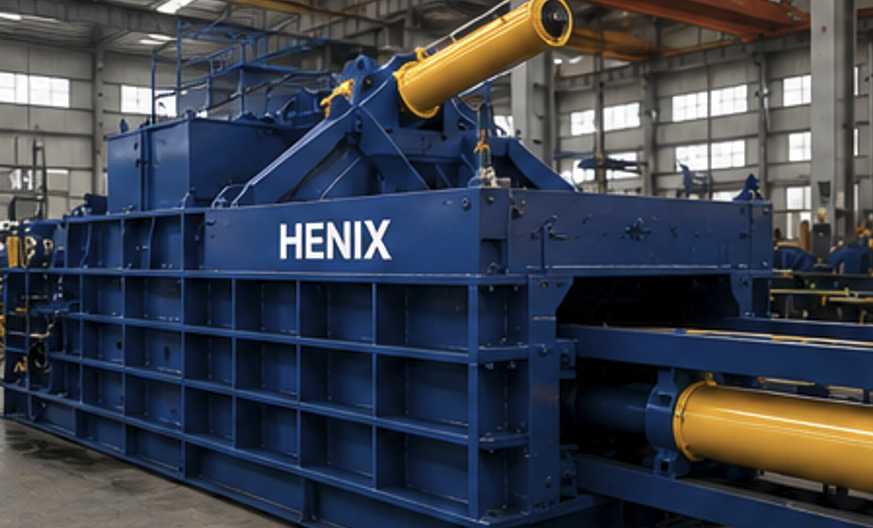

Heavy-Duty Chamber
01
Heavy-duty chamber designed for continuous scrap processing and long service life.
04

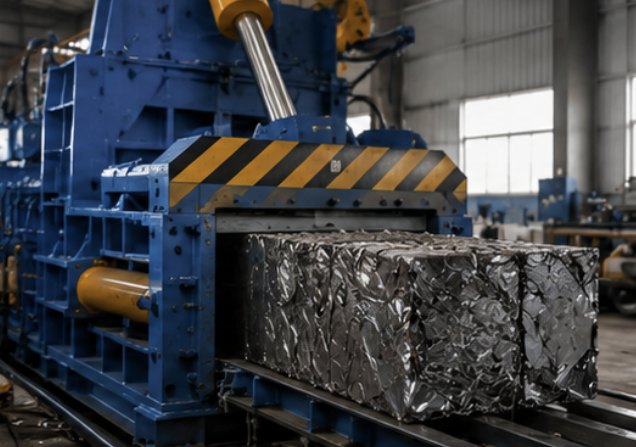

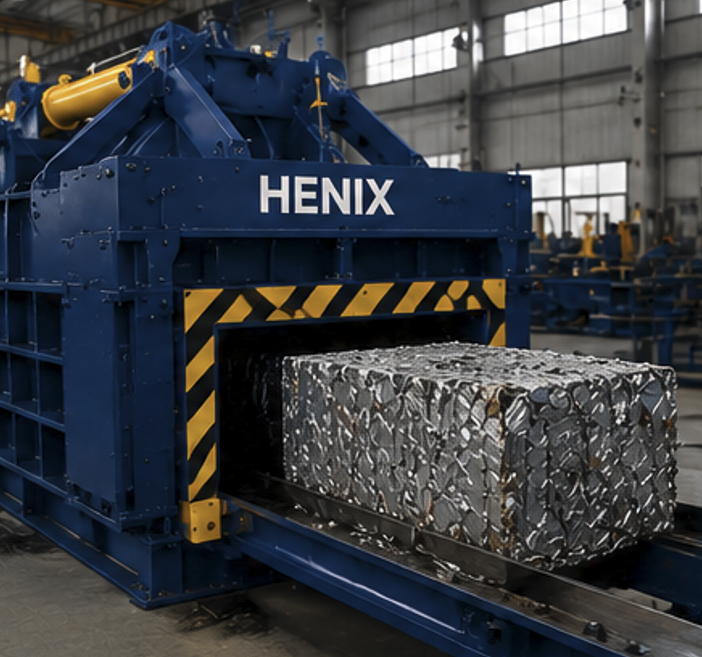

Bale Discharge System
Side-turning discharge design allows finished bales to be released quickly, and improving workflow.
02

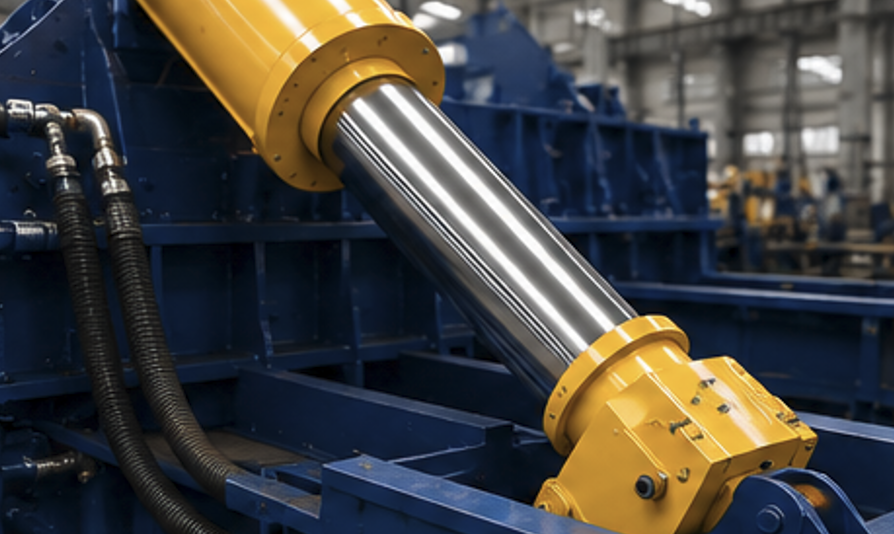

Hydraulic System
Optimized hydraulic circuit delivers strong compression force and smooth cylinder movement.

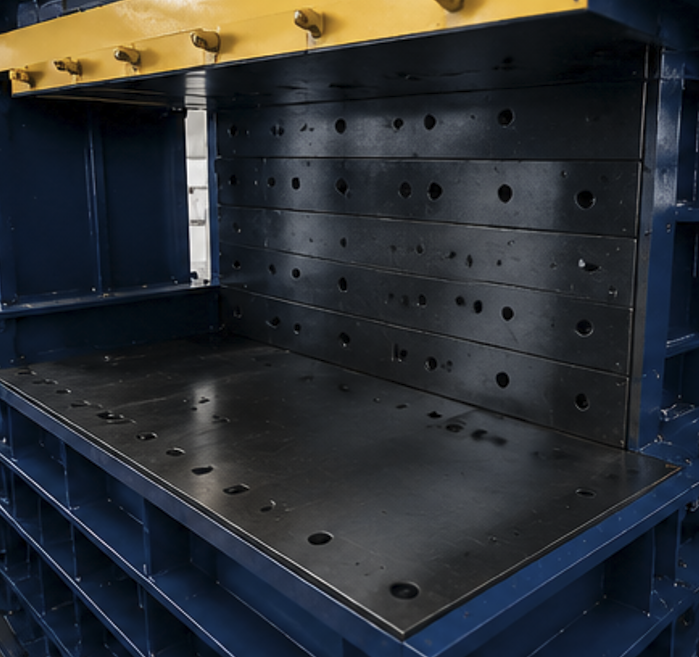

Wear Plates
05
Replaceable liner plates protect high-wear areas inside the chamber and help reduce maintenance costs.

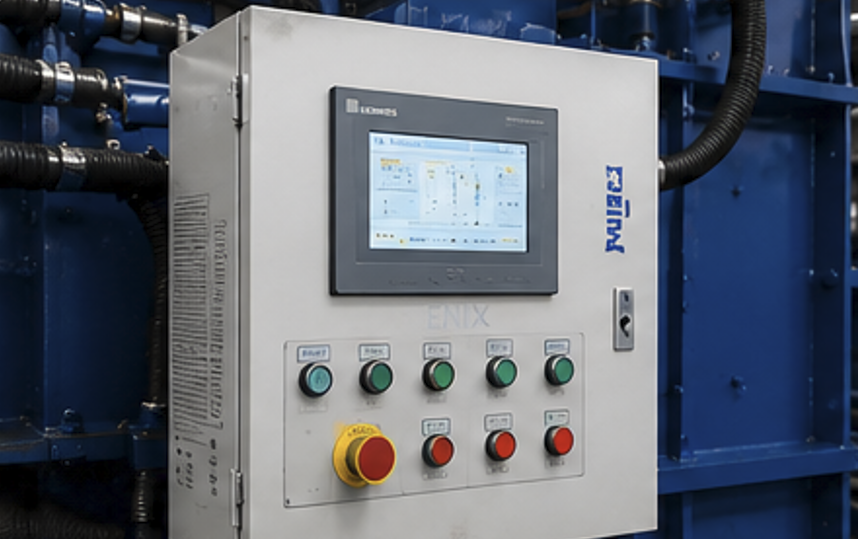

PLC Control Panel
03
User-friendly PLC control system simplifies operation, improves safety, and efficiently.
06

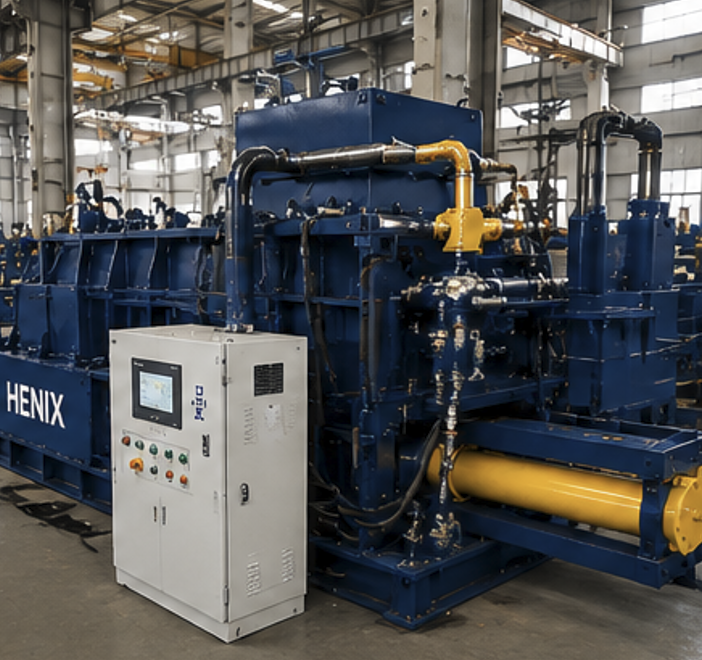

Custom Solutions
Chamber size, bale dimensions, power system, and discharge method can be customized.
How It Works
Simple working process from scrap loading to finished metal bales.
01

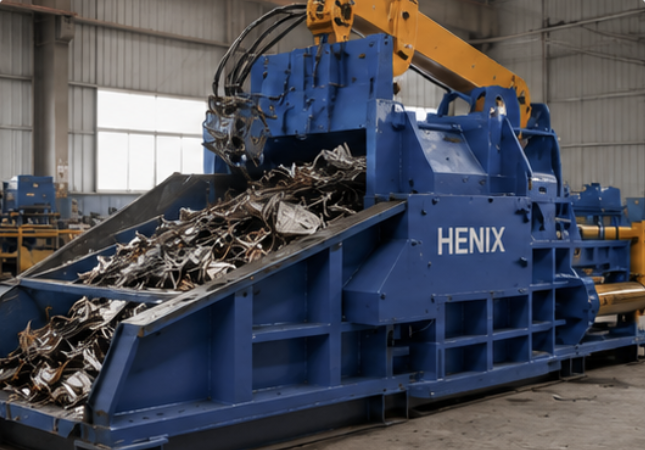

Loading Scrap
Load loose scrap metal into the baler chamber manually or with lifting equipment.
02

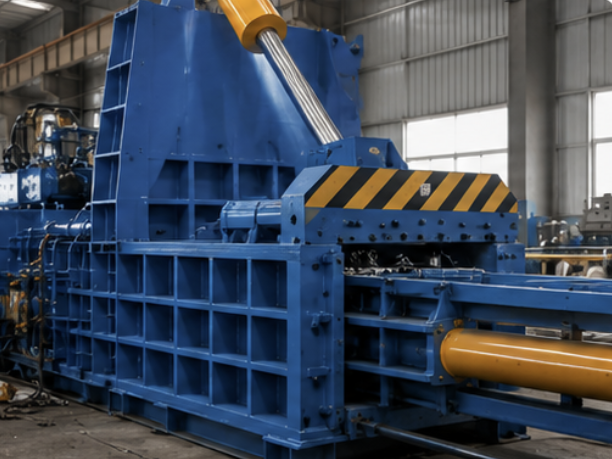

Hydraulic Compression
The hydraulic system compresses the material into dense and compact metal bales.
03
Finished Bale Output
Finished bales are discharged for easier storage, handling and transportation.
Suitable Materials
Scrap Steel
Aluminum Scrap
Copper Scrap
Stainless Steel
Metal Turnings
Used Metal Cans
Technical Specifications
| Parameter | Y81-125 |
|---|---|
| Nominal Force | 1250 kN (125 ton) |
| Bale Size (W×H) | 300×300 mm |
| Bale Length | Adjustable |
| Bin Size (L×W×H) | 1200×700×600 mm |
| Motor Power | 15 kW |
| Parameter | Y81-125 |
|---|---|
| Operation | PLC Automatic / Manual |
| Cycle Time | 25–35 s / cycle |
| Hydraulic Pressure | 25 MPa |
| Machine Weight | Approx. 8.5 ton |
| Machine Dimension (L×W×H) | 4800×1800×2300 mm |
Note: The technical data is subject to change without prior notice.
Applications

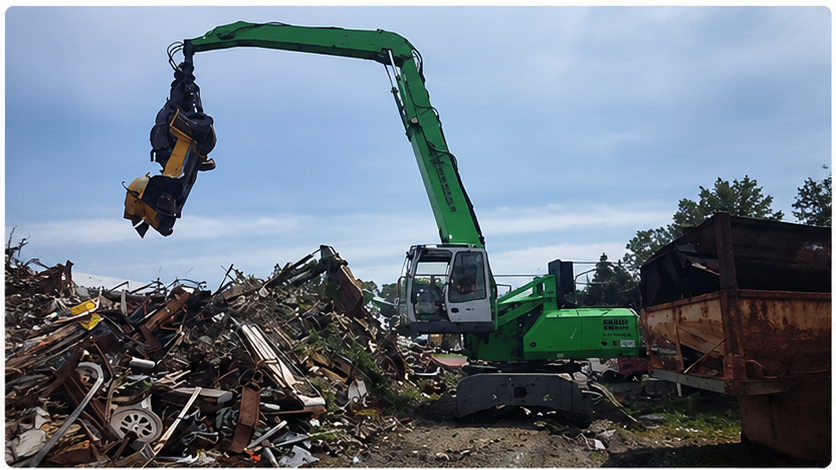

Scrap Yards

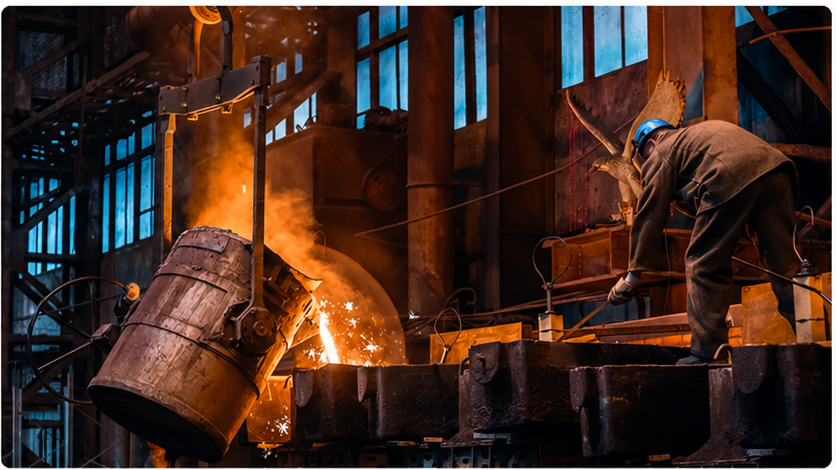

Foundries

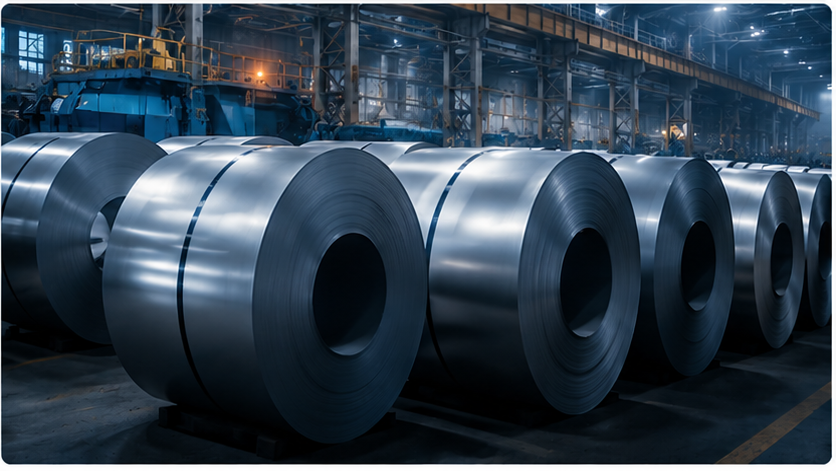

Steel Mills

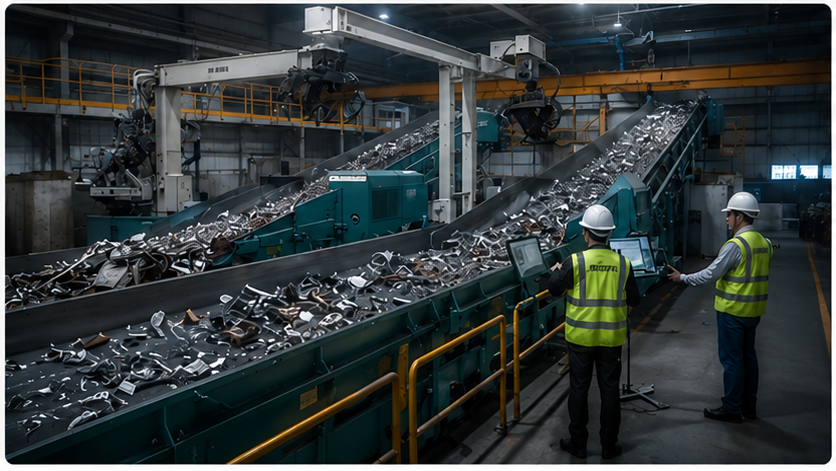

Metal Processing

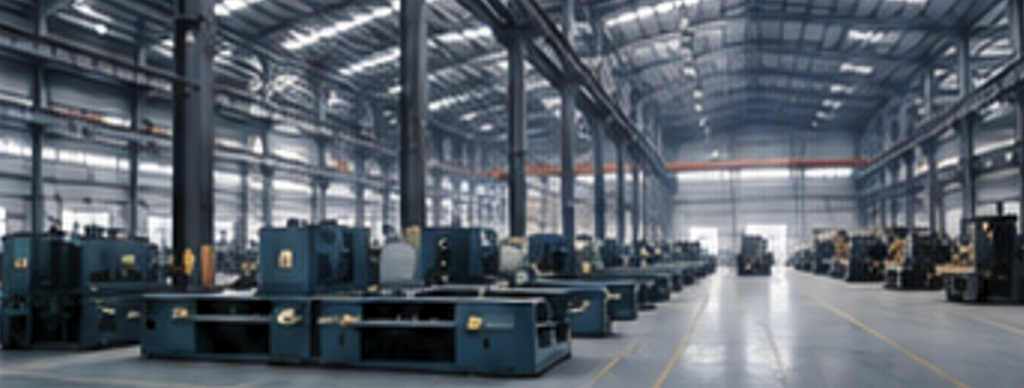

Manufactured With Quality In Mind
Factory Direct Supply
Direct supply with competitive pricing, stable quality and reliable delivery.
Custom Machine Solutions
Bale size, chamber size, voltage, motor brand and feeding system can be customized.
Strict Quality Control
From steel fabrication to final testing, every production process is strictly controlled.
Global Export Experience
Machines exported to Asia, Middle East, Africa and South America with professional export support.
10+
Years Experience
20+
Countrires Exported
500+
Machines Installed
100%
Quality Inspection
FAQ
01 What materials can this baler process?
It can process scrap steel, aluminum, cans, metal shavings and other recyclable metal materials.
02 Can the bale size be customized?
Yes. Bale size, chamber size and discharge method can be customized according to your material and production requirements.
03 What information is needed for quotation?
Please provide material type, daily capacity, bale size requirement, voltage and preferred discharge method.
04 Can voltage be customized?
Yes. Voltage can be customized according to your local industrial power supply.
05 What is the delivery time?
Delivery time depends on the model and customization requirements. We will confirm the schedule after receiving your specifications.
Can it process aluminum and copper scrap?
Yes. The Y81-125 scrap metal baler is suitable for compressing aluminum cans, aluminum profiles, copper scrap, steel scrap, stainless steel and other recyclable metal materials into compact bales for easier transportation and recycling.
Can a conveyor or hopper be added?
Yes. The Y81-125 baler can be customized with optional feeding conveyor systems, enlarged hoppers and automatic control solutions according to customer requirements and material types.
What warranty do you provide?
We provide a 12-month warranty for the machine. Technical support, spare parts supply and online troubleshooting assistance are available throughout the machine’s service life.
09 Is operator training provided?
Yes. We provide detailed operation manuals, installation guidance, and online technical support. Training can also be arranged for large projects when required.
Can the baler be customized?
Yes. HENIX can customize the chamber size, bale dimensions, motor configuration, feeding system, and discharge method according to your material type, production requirements, and site conditions.
