Y81-250 Scrap Metal Baler

Name: Y81-125 Scrap Metal Baler
Brand: HENIX Machinery
SKU: Y81-125
Availability: InStock

125-ton hydraulic scrap metal baler designed for efficient compression and transportation of ferrous and non-ferrous scrap.

1250 kN

Norminal Force

300x300 mm

Bale Size

1200x700x600

Chamber Size

15 kW

Motor Power

Side-Turning

Discharge Type

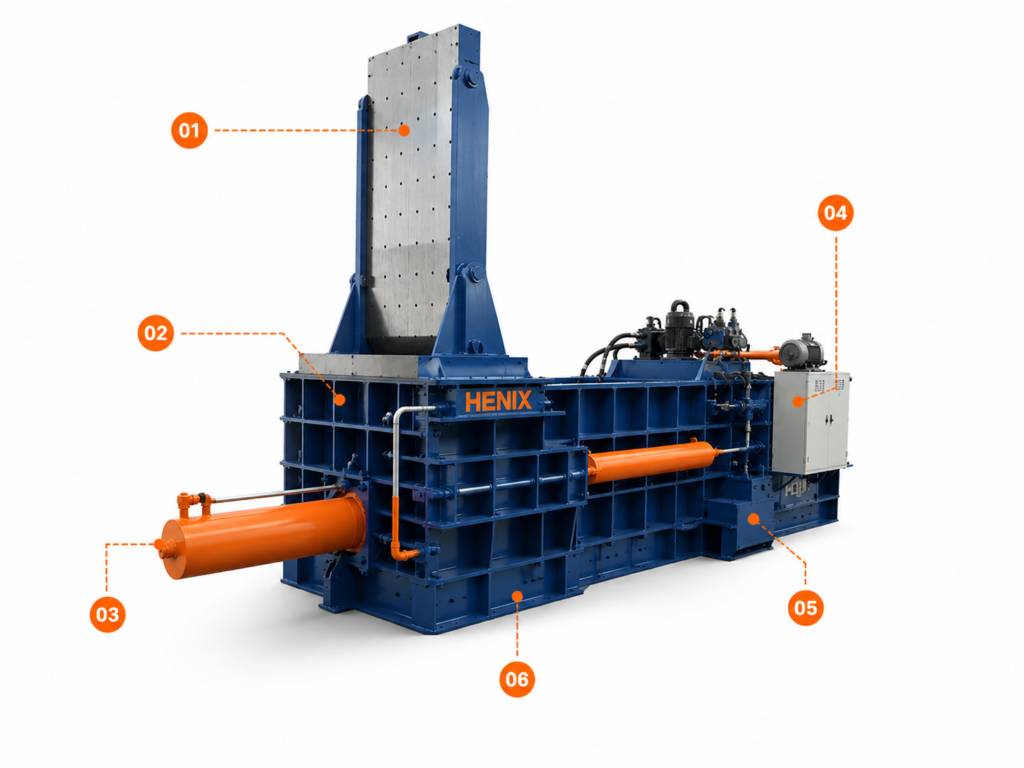

Machine Highlights

Engineered for Maximum Performance

Built with a heavy-duty structure and advanced hydraulic technology, the Y81-125 delivers reliable performance, long service life, and efficient scrap processing.

01

Heavy-Duty Structure

Reinforced steel frame for maximum durability.

02

Wear-Resistant Liners

Replaceable liners extend service life.

03

High-Efficiency Hydraulic System

Strong compression with stable performance.

04

Reliable Electrical Control

Siemens or Schneider components available.

05

Easy Maintenance

Quick inspection and reduced downtime.

06

Customizable Configuration

Flexible options for different requirements.

Applications

Applications Across Industries

The Y81-125 hydraulic baler is widely used in scrap yards, processing plants, steel mills, and manufacturing facilities for efficient metal waste handling.

Scrap Yards

Compress and bale scrap metals for easier storage and transport.

Processing Plants

Optimize scrap handling and workflow efficiency.

Steel Mills

Process large volumes of metal scrap efficiently.

Manufacturing Plants

Recycle production waste while improving safety.

How it Works

From Scrap to Compact Bale

Follow the simple four-step process that transforms loose scrap metal into dense and transport-ready bales.

01 Scrap Loading

Place scrap metal into the press chamber.

02 Hydraulic Compression

Compress scrap into dense bales.

03 Bale Formation

Shape material into a uniform bale.

04 Automatic Discharge

Discharge the finished bale automatically.

Scrap Loading

›

Hydraulic Compression

›

Bale Formation

›

Automatic Discharge

Fast Cycle Time

Stable operation and efficient output.

Reliable Hydraulics

Powerful compression with smooth movement.

Energy Saving

Optimized hydraulic system design.

Built to Last

Heavy-duty structure for long service life.

Powerful Performance. Built for Heavy Duty.

The Y81-125 is designed for maximum efficiency and reliable operation in demanding scrap recycling environments.

Technical Specifications

Engineered for Reliable Performance

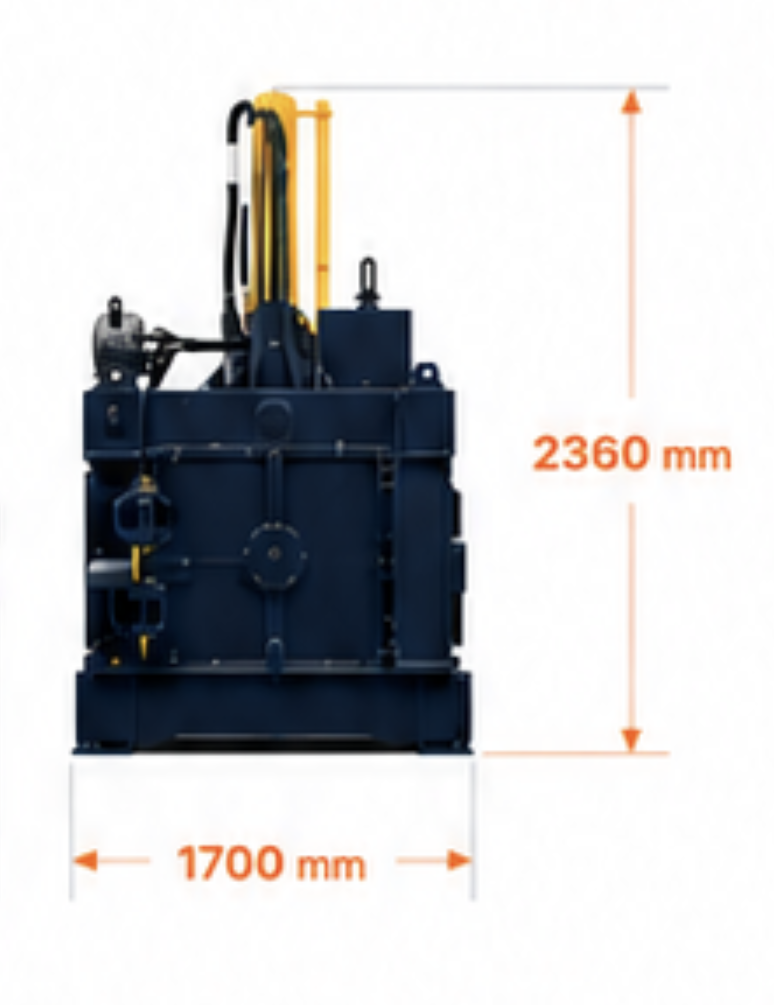

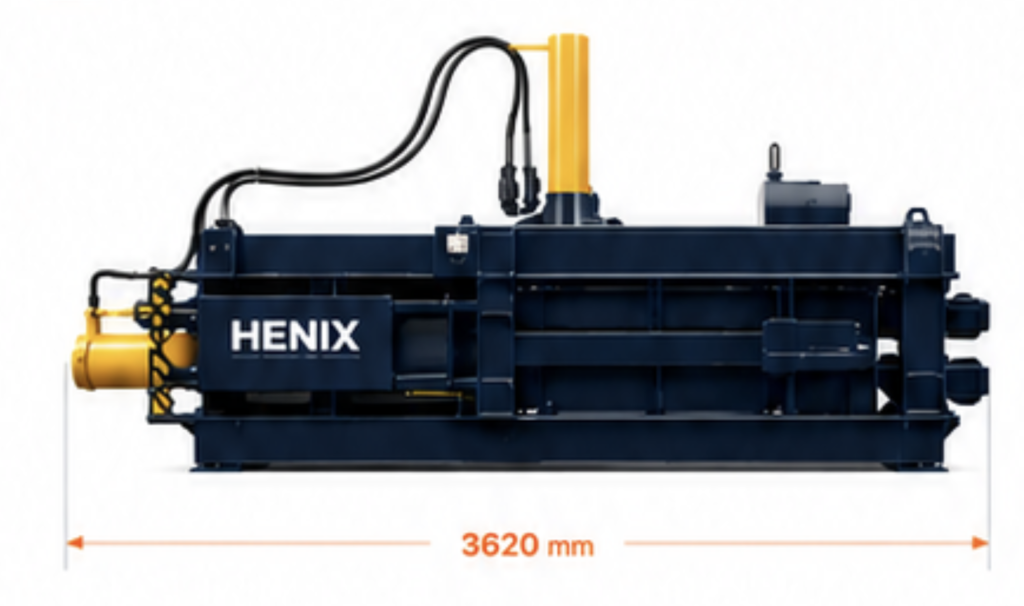

Key dimensions and technical specifications of the Y81-125 hydraulic scrap metal baler.

* Dimensions may vary slightly depending on configurations.

Parameter

Value

Model

Y81-125

Nominal Force

1250 kN

Bale Size (W - H)

300 x 300 mm

Chamber Size (L -W- H)

1200 x 700 x 600 mm

Motor Power

15 kW

Cycle Time

≈ 120 s

System Pressure

25 MPa

Operation

Manual / Automatic

Controal System

PLC

Discharge Type

Side-turning

Cooling Method

Air Cooling / Water Cooling

Oil Tank Capacity

260 L

Machine Weight

≈ 6.5 T

Voltage

380V 50Hz (Customizable)

Noise Level

≤ 75 dB

Opetional Configurations

Premium Motor Brand

Siemens / WEG high-efficiency motor for stable performace and long service life

Reliable Electrical System

Schneider / Siemens electrical aomponents for safe and reliable operation

Automatic Operation

PLC control with auto cycle,oe-key operation, imporving efficiency and safety.

Customizable Chamber Size

Chamber size can be customized to meet different materials and production needs

Frequently Asked Questions

Everything You Need to Know

Get anwsers about operation, customization, delivery, installation and technical support.

What materials can the Y81-125 Scrap Metal Baler process?

The machine handles steel scrap, aluminum, copper, stainless steel, metal turnings, cans, and various recyclable metal materials.

What is the standard bale size?

The standard bale cross-section is 300 × 300 mm, depending on material type and compression conditions.

What after-sales service does HENIX provide?

HENIX offers technical support, spare parts supply, troubleshooting assistance, and long-term after-sales service.

What motor power does the Y81-125 use?

The standard model is equipped with a 15 kW motor for reliable and energy-efficient operation.

What is the nominal pressing force of the Y81-125?

The Y81-125 delivers 1250 kN (125 tons) of pressing force for efficient compression and stable bale formation.

What discharge method is available?

The machine uses a side-turning bale discharge system for quick, reliable, and efficient bale removal.

Can the machine operate with different voltages?

Yes. The Y81-125 can be configured for 380V, 415V, 440V, or other voltage standards to meet local power requirements.

Do you provide installation support?

Yes. We provide installation guidance, operator training, commissioning support, and technical documentation.

What is the chamber size of the machine?

The standard chamber size is 1200 × 700 × 600 mm and can be customized for specific applications.

What bale density can be achieved?

Bale density varies by material type, moisture level, and operating conditions, helping reduce transport costs.

What safety features are included?

The machine includes emergency stop functions, hydraulic protection, safety interlocks, and reliable electrical controls.

Can the Y81-125 be customized?

Yes. Chamber size, bale dimensions, voltage, motor power, and control systems can be customized.

Need Help?

Get Your Custom Baler Solution！

Tell us your material type, capacity requirements, and destination country. Our engineers will recommend the most suitable baler configuration.
